Product

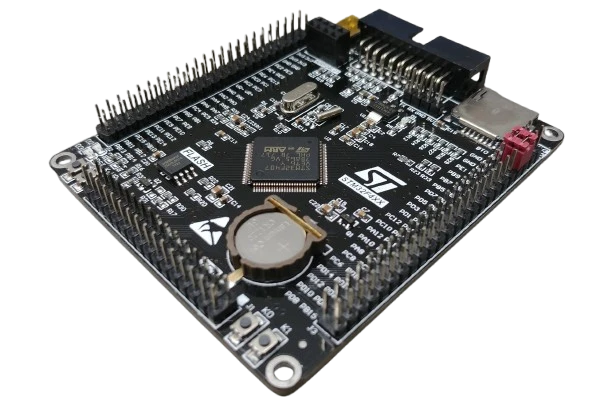

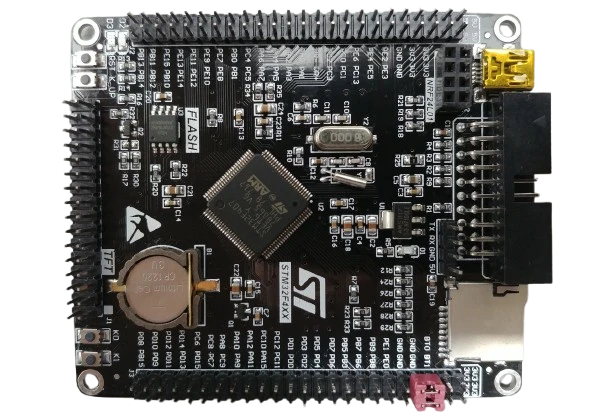

STM32F407VET6 ARM core Cortex-M4
₹2,183₹2,2503% off
Incl. of all taxes (GST)
You save ₹67
STM32F407VET6 is a high-performance 32-bit microcontroller from the STM32F4 family by STMicroelectronics. It is built around the ARM Cortex-M4 core with integrated Floating Point Unit (FPU) and DSP instructions, making it suitable for real-time embedded systems, industrial automation, robotics, IoT devices and communication applications.
In Stock
Selling fastFree shipping on this order
Specifications
STM32F407VET6 ARM Cortex M4
168MHz, 210 DMIPS / 1.25 DMIPS / MHz
1.8V - 3.6V operating voltage
8MHz system crystal
32.768KHz RTC crystal
2.54mm pitch pins
JTAG/SWD header
512 KByte Flash, 192 + 4 KByte SRAM
3x SPI, 3x USART, 2x UART, 2x I2S, 3x I2C
1x FSMC, 1x SDIO, 2x CAN
1x USB 2.0 FS / HS controller (with dedicated DMA)
1x USB HS ULPI (for external USB HS PHY)
Micro SD
Winbond W25Q16 16Mbit SPI Flash
RTC battery CR1220
1x 10/100 Ethernet MAC
1x 8 to 12-bit Parallel Camera interface
3x ADC (12-bit / 16-channel)
2x DAC (12-bit)
12x general timers, 2x advanced timers
AMS1117-3.3V: 3.3V LDO voltage regulator, max current 800mA
Micro USB for power and comms
Red power LED D1
Red user LED D2 (PA6) active low
Red user LED D3 (PA7) active low
2x jumpers for bootloader selection
Reset button, Wakeup button, 2x user buttons K0 (PE4) and K1 (PE3)
2x24 side pins + 2x16 bottom pins + 1x4 ISP pins
2x16 FMSC LCD Interface
Dimensions: 85.1mm x 72.45mm
STM32F407VET6 ARM Cortex M4
168MHz, 210 DMIPS / 1.25 DMIPS / MHz
1.8V - 3.6V operating voltage
8MHz system crystal
32.768KHz RTC crystal
2.54mm pitch pins
JTAG/SWD header
512 KByte Flash, 192 + 4 KByte SRAM
3x SPI, 3x USART, 2x UART, 2x I2S, 3x I2C
1x FSMC, 1x SDIO, 2x CAN
1x USB 2.0 FS / HS controller (with dedicated DMA)
1x USB HS ULPI (for external USB HS PHY)
Micro SD
Winbond W25Q16 16Mbit SPI Flash
RTC battery CR1220
1x 10/100 Ethernet MAC
1x 8 to 12-bit Parallel Camera interface
3x ADC (12-bit / 16-channel)
2x DAC (12-bit)
12x general timers, 2x advanced timers
AMS1117-3.3V: 3.3V LDO voltage regulator, max current 800mA
Micro USB for power and comms
Red power LED D1
Red user LED D2 (PA6) active low
Red user LED D3 (PA7) active low
2x jumpers for bootloader selection
Reset button, Wakeup button, 2x user buttons K0 (PE4) and K1 (PE3)
2x24 side pins + 2x16 bottom pins + 1x4 ISP pins
2x16 FMSC LCD Interface
Dimensions: 85.1mm x 72.45mm
About this product
STM32F407VET6 ARM core Cortex-M4 is stocked, tested, and dispatched by Wavtron from our India warehouse. Every unit in the Microcontroller Boards range is functionally checked before packing so you can build with confidence.
Order before 2 PM IST for same-day dispatch with full GST invoicing. Need a datasheet, sample code, or bulk pricing? Our support team replies within one business day.
